Cold Drawn Spring Steel Spline Shaft

1. 6150 cold drawn spline shaft has high life and strength.
2. 9260H cold drawn spline shaft can keep synchronous rotation with the shaft.
3. 9260H cold drawn spline shaft has stable transmission and high safety.

  • Information
  • Download

Description of Cold Drawn Spring Steel Spline Shaft:

There are two types of 6150 cold drawn spline shaft and involute spline shaft. The rectangular spline shaft in the spline shaft is widely used, while the involute spline shaft is used for large loads, high centering accuracy requirements, and small dimensions. Great connection. The spline shaft is a shaft, the shaft end or a certain part of the shaft is processed into a spline, which is used to transmit large torque.

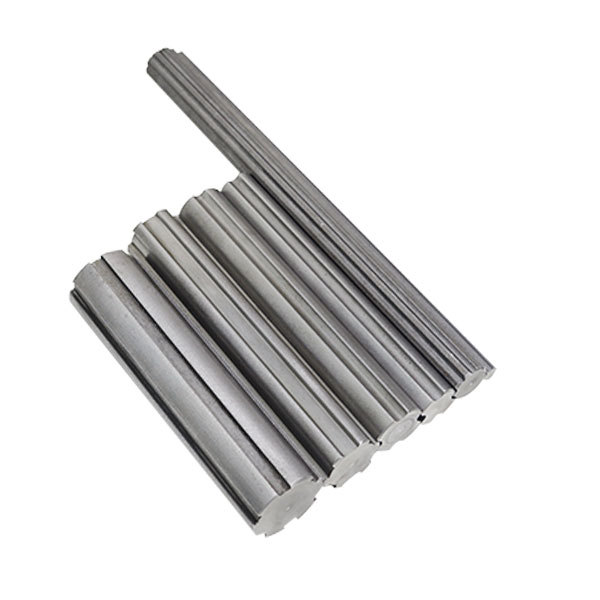

6150 cold drawn spline shaft

Specifications of Cold Drawn Spring Steel Spline Shaft:

Product NameCold drawn  Spring steel spline shaft
Materials Grade52100, GCr15,GGr15SiMn, SUJ2
StandardAISI, ASTM,JIS, GB,EN
Size8-50
Length3000mm-12000mm or as client's request
Tolerance±1%
TechnologyCold drawn,Hot rolled
PackingSeaworthy packing
Payment TermL/C,T/T(30% deposit)
Lead Time20 days or to be negotiated
MOQ≤1000kgs
Supply Ability10000 Ton Per year

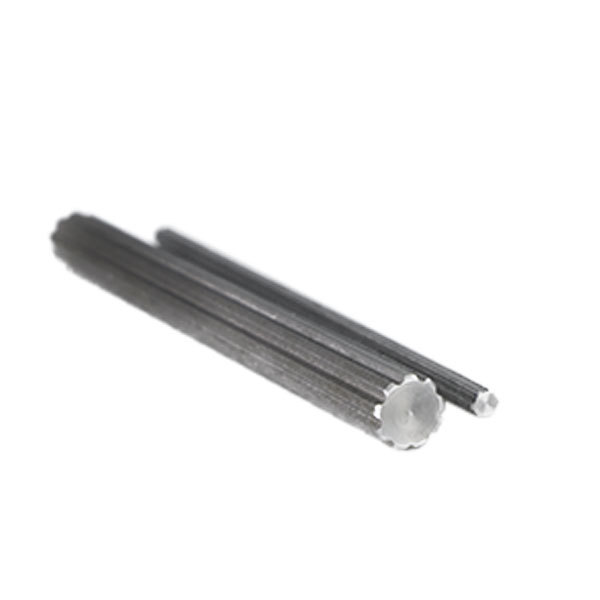

9260H cold drawn spline shaft


Application of Cold Drawn Spring Steel Spline Shaft:

9260H cold drawn spline shaft and 6150 cold drawn spline shaft can be used in aircraft, automobile, tractor, machine tool manufacturing, agricultural machinery and general mechanical transmission and other devices.


Features of Cold Drawn Spring Steel Spline Shaft:

1. There is a radial force on the teeth when loaded, which can act as an automatic centering function, so that each tooth is evenly stressed

2. Multi-tooth work, 6150 cold drawn spline shaft has high load capacity, good alignment and good guiding.

3. High strength and long life, the processing technology is the same as that of gears, 6150 cold drawn spline shaft is easy to obtain high precision and interchangeability.

4. The stress concentration is small, the strength of the shaft and the hub is weakened, the 6150 cold drawn spline shaft is easy to process, and high precision can be obtained by grinding.

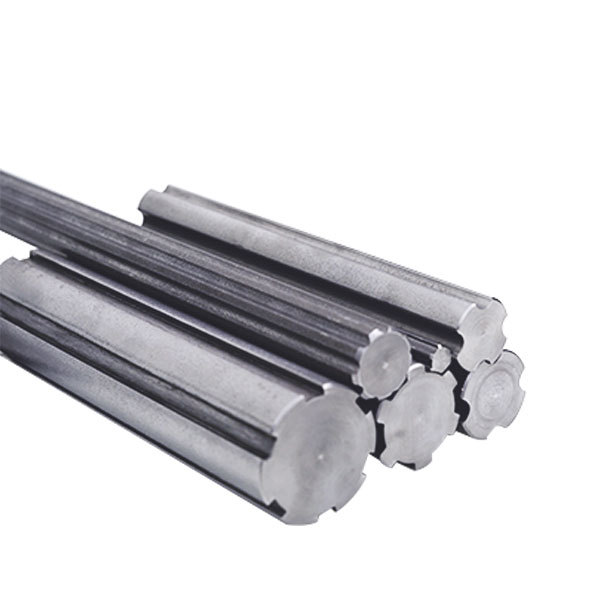

6150 cold drawn spline shaft


Services we provide:

Provide timely feedback on inquiry and issues of customers within 24 hours, and provide technical support and problem solving solutions for subsequent products. Provide customers with professional product suggestions, improve production efficiency, reduce production costs, and help customers improve their market competitiveness.

9260H cold drawn spline shaft

Customization ability:

According to the dimensions, tolerances, and surface requirements required by customers drawings, our company can tailor different production processes and quality control processes for customers to meet their customized product requirements.

6150 cold drawn spline shaft
