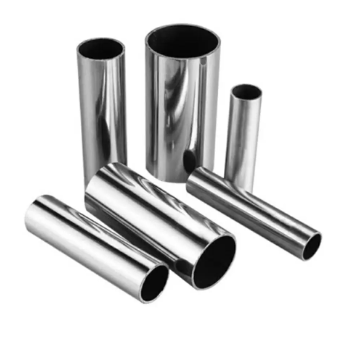

Stainless Steel Tube and Pipe

304 / 304L stainless steel pipe is a strong, tough metal with high corrosion protection, high temperature resistance and the ability to be sterlized. It has high workability and can be manufactured to tight tolerances and welded. These alloys are the most commonly used of the stainless steel alloys and are a cost-effective choice for most applications.

Information
Download

Type	Stainless Steel Decorative pipe/tube
Material	304 304L 316 316L 316Ti 321 309S 310S 317L 347H 2205 2507 904L
Thinckness	1.73mm-59.54mm
Outer diameter	10.3mm-1219.0mm
Length	6m or as customer's requirement
Finish	Polished, Pickled,hairline,mirror
Shape	Round,square, rectangular,oval
Technology	Seamless,weld
Standard	JIS, AISI, ASTM, GB, DIN, EN ,etc.
MOQ	1Ton
Application	Decoration, industry, etc.
Certificate	SGS
Packaging	Standard exporting packing

Specifications of stainless steel decorative pipe
Standard		0.6	0.7	0.8	0.9	1	1.2	1.5	2	2.5	3	3.5	4	4.5
Φ	12.3	0.57	0.71	0.88	1.05	1.21	1.53	1.84
Φ	12.7	0.59	0.74	0.91	1.09	1.26	1.91	1.91
Φ	15.3	0.72	0.89	1.11	1.32	1.53	2.33	2.33
Φ	16	0.75	0.93	1.16	1.38	1.6	2.45	2.45	3.06
Φ	17.2	0.81	1	1.25	1.49	1.73	2.19	2.65	3.31
Φ	18	0.85	1.05	1.31	1.56	1.81	2.3	2.78	3.47
Φ	19	0.89	1.11	1.38	1.65	1.91	2.43	2.94	3.68	4.86
Φ	20.2	0.95	1.18	1.47	1.76	2.04	2.6	3.14	3.93	5.2
Φ	22	1.04	1.29	1.61	1.92	2.23	2.84	3.43	4.31	5.71
Φ	25	1.18	1.47	1.83	2.19	2.54	3.24	3.93	4.94	6.56
Φ	28	1.32	1.65	2.06	2.46	2.86	3.65	4.42	5.57	7.41
Φ	29.2	1.38	1.72	2.14	2.57	2.98	3.81	4.62	5.82	7.75
Φ	31.8	1.51	1.88	2.34	2.8	3.25	4.16	5.04	6.36	8.49	10.55	12.53
Φ	35.8	1.7	2.12	2.64	3.16	3.67	4.69	5.7	7.2	9.63	11.98	14.26
Φ	38	1.8	2.25	2.8	3.35	3.9	4.99	6.07	7.66	10.25	12.77	15.22
Φ	42		2.49	3.1	3.71	4.32	5.52	6.72	8.5	11.39	14.21	16.95
Φ	48		2.85	3.55	4.25	4.95	6.34	7.71	9.75	13.09	16.36	19.55
Φ	50.8		3.01	3.76	4.5	5.24	6.71	8.17	10.34	13.89	17.36	20.76	24.09
Φ	60		3.56	4.45	5.33	6.2	7.95	9.68	12.26	16.5	20.66	24.75	28.77
Φ	63			4.67	5.6	6.52	8.35	10.18	12.89	17.35	21.74	26.05	30.29
Φ	70				6.22	7.25	9.29	11.32	14.36	19.34	24.25	29.09	33.85
Φ	76				6.76	7.88	10.1	12.31	15.61	21.04	26.4	31.69	36.9	42.03
Φ	80				7.12	8.3	10.64	12.97	16.45	22.18	27.84	33.42	38.93	44.36
Φ	85				7.57	8.82	11.31	13.79	17.49	23.6	29.63	35.59	41.47	47.28
Φ	88.9				7.92	9.23	11.84	14.43	18.31	24.71	31.03	37.28	43.45	49.55
Φ	101.6				9.06	10.56	13.55	16.52	20.97	28.32	35.59	42.78	49.91	56.96
Φ	108					11.23	14.41	17.58	22.31	30.13	37.88	45.56	53.16	60.69
Φ	114					11.86	15.21	18.56	23.56	31.84	40.04	48.16	56.21	64.18
Φ	127						16.96	20.7	26.28	35.53	44.7	53.8	62.82	71.76
Φ	133						17.77	21.69	27.54	37.23	46.85	56.4	65.87	75.26
Φ	141						18.85	23	29.21	39.51	49.72	59.86	69.93	79.92
Φ	159							25.96	32.98	44.62	56.18	67.67	79.08	90.42
Φ	168								34.86	47.17	59.41	71.57	83.65	95.66
Φ	219								45.54	61.66	77.7	93.68	109.57	125.39

Specifications of stainless steel decorative square pipe
Standard				0.6	0.7	0.8	0.9	1	1.2	1.5	2	2.5	3	3.5	4	4.5
Φ	10	×	10	0.59	0.74	0.91	1.09	1.26	1.59	1.91
Φ	12.7	×	12.7	0.76	0.69	1.17	1.4	1.62	2.06	2.48
Φ	15	×	15	0.9	1.12	1.39	1.66	1.93	2.45	2.96
Φ	19	×	19	1.14	1.42	1.77	2.12	2.46	3.13	3.8	4.77	6.33
Φ	20	×	20	1.2	1.5	1.87	2.23	2.59	3.31	4.01	5.04	6.69
Φ	22	×	22	1.32	1.65	2.06	2.46	2.86	3.65	4.43	5.57	7.42
Φ	25	×	25	1.51	1.88	2.34	2.8	3.26	4.16	5.06	6.37	8.5
Φ	28	×	28	1.69	2.11	2.63	3.14	3.66	4.68	5.68	7.17	9.59	11.93
Φ	30	×	30	1.81	2.26	2.82	3.37	3.92	5.02	6.1	7.7	10.31	12.84
Φ	36	×	36		2.72	3.39	4.06	4.72	6.05	7.36	9.3	12.48	15.58
Φ	38	×	38		2.87	3.58	4.29	4.99	6.39	7.78	9.83	13.2	16.5	19.72	22.86
